Re: auto dimming r/v/mirror
« Reply #15 on: 07 September 2006, 19:19:54 »

See here for how I did it.

(Dimming function only)

http://www.omegaowners.com/forum/YaBB.pl?num=1154773531

Logged
Mods.  'Hillper boot release'.  Dimming mirror.  Cruise control. Rear parking sensors.  Becker/Rockford Fosgate/Infinity/Alpine audio.

TheBoy

  • Administrator
  • *********
  • Offline Offline
  • Gender: Male
  • Brackley, Northants
  • Posts: 96774
  • Millennium Man
    • Anything that goes
    • View Profile
Re: auto dimming r/v/mirror
« Reply #16 on: 07 September 2006, 19:28:05 »

Hillper, how about a proper how2? You type it, one of the admins will move (not me, I ain't around for a few days...)    ;)
Logged
I don't tolerate bickering, and I'm always grumpy.
And Lizzie Zoom says I'm a heartless bastid...and she's absolutely correct!

Admin

  • Administrator
  • *********
  • Offline Offline
  • 0
  • Posts: 2595
    • View Profile
Re: auto dimming r/v/mirror
« Reply #17 on: 07 September 2006, 20:33:45 »

Wiring up the self dipping mirror is easy.

Live feed, earth, and reverse override (to disable tinting when reverse is selected).

Now,as for fitting memory seats... into an MV6? Why??

The whole point of the MV6 is that it is the "sporty" model with, among other things, superbly comfortable recaro seats.

I would just fit a self tinting mirror (brilliant things!) and move it by hand as you would a normal mirror. :)
Logged
The Administrator.

Salty

  • Senior Member
  • ****
  • Offline Offline
  • Gender: Male
  • Fleetwood
  • Posts: 516
    • View Profile
Re: auto dimming r/v/mirror
« Reply #18 on: 07 September 2006, 20:50:52 »

Quote

I would just fit a self tinting mirror (brilliant things!) and move it by hand as you would a normal mirror. :)

Drove mine the dark for the first time yesterday and saw the self dimming mirror in action. Brilliant feature just found it a bit odd trying to get used to it.

Definitely worth the trouble of fitting.
Logged

TheBoy

  • Administrator
  • *********
  • Offline Offline
  • Gender: Male
  • Brackley, Northants
  • Posts: 96774
  • Millennium Man
    • Anything that goes
    • View Profile
Re: auto dimming r/v/mirror
« Reply #19 on: 08 September 2006, 10:43:41 »

Quote

Live feed, earth, and reverse override (to disable tinting when reverse is selected).

And courtesy light, so it doesn't dim if courtesy light on - simple connection near mirror anyway...
Logged
I don't tolerate bickering, and I'm always grumpy.
And Lizzie Zoom says I'm a heartless bastid...and she's absolutely correct!

Hillper

  • Intermediate Member
  • ***
  • Offline Offline
  • Gender: Male
  • Aylesbury
  • Posts: 435
  • Werthers. Winter, too hard.  Summer, too soft.
    • View Profile
Re: auto dimming r/v/mirror
« Reply #20 on: 08 September 2006, 12:35:40 »

This is a guide for installing the mirror using it's tint function only.
Applies to facelift.  I believe the mirrors are the same electrically, but the facelift has a different mount.  (Thanks Tunnie).

The mirror can still be adjusted easily by hand.

I bought mine S/Hand from www.Leavalleymotors.co.uk  (About £40).

The battery should always be disconnected before carrying out any electrical  work.

If the tint only function is needed, you don't need a long length of loom with the mirror, just the wires immediatetly exiting it.  (Can be snipped from donor car easily).

Remove old mirror by knocking the base downwards as though sliding the mirror down the inside of the windscreen.  You can see how it fits by inspecting the new mirror.
You'll need to hold it with one hand and thump your hand with the other.  It's quite stiff.

The tinting mirror and car loom wire colours seem to vary, so the best thing to do is pop the back off the mirror and inspect the innards.





The control board is on the left, the motors are in the centre.

For tint only, you need to connect IGN (Blue/Grey) to a switched 12v supply and GND (Brown) to 0V.
You can connect REV (Pink/Purple) to the reversing lights circuit to disable tinting in reverse, is you wish.




The wires are fed to a socket in the mirror mount.




The socket has 11 pins and one blank.  (Blank is Pin1, bottom right.  Pin6 is bottom left)



IGN (Blue/Grey) is pin2, next to blank.
GND (Brown) is pin5.
REV (Pink/Purple) is pin3.

As I didn't have the plug to fit the mount socket, I had to find a way to connect to the socket pins.
Hopefully, your mirror should come with a socket on a long length of cable or bare wires exiting the mirror.

I found that a computer motherboard connector fitted on the pins exactly.  (Better than snipping and soldering wires in the mount).

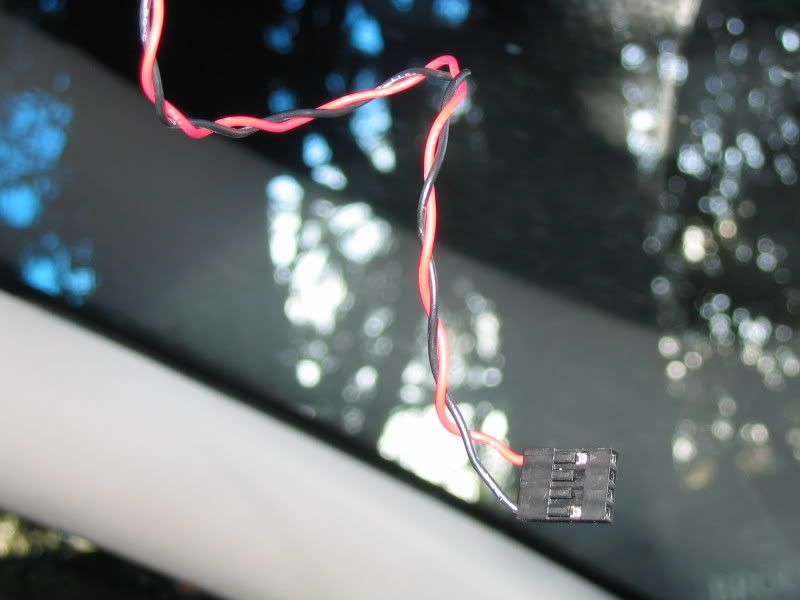

Here it is, dangling from the exit hole in the headlining, where the mirror fits.  Coincidently, it's wires were red and black.



The two ends of the wires were connected to the wires of a plug I found under the headlining.  (Sunroof.  Unused in my case).

Here is the other end of the red and black wires where they are attached to the plug.




In the sunroof plug, Brown is 0V and Black is Ign 12v.  They are placed on opposite diagonal corners of the plug.
Strip back a little of the insulation and solder the mirror wires to the exposed conductors.
Insulate with tape.

Re-assemble and it should work.  Slide the mirror upwards toward the headlining until it locates.

You'll notice that there are two light sensors.  On the front and back of the mirror.
The unit knows if it's night as both sensors read low.  Now if the sensor on the mirror face suddenly receives a burst of light from a following car's lights, it compares it with the other sensor's output and if there is a big difference, dims the mirror.
It isn't affected by cars coming towards you as the sensors have narrow field of view lenses.

The tinting is fast to actuate and clear.

A very useful addition.










« Last Edit: 08 September 2006, 12:54:52 by Hillper »
