Author Topic: Right Side Xenon Still Lazy althoug new Bulb and New Ballast, MOT Next Week  (Read 562 times)

0 Members and 1 Guest are viewing this topic.

polilara

  • Senior Member
  • ****
  • Offline Offline
  • Gender: Male
  • Finland
  • Posts: 850
    • 2.6 Y26SE Elegance 2001
    • View Profile

The original topic is below in bottom.

Then I changed Ballast in Nov 2022. Unfortunately still right side fires or not. In the morning it Fires but after a while when started again it usually does not. Left side 100% ok. Happens when Day Light Relay tries to fire or when I turn the switch. So perhaps something after this 12V is splitting into 2...

Below is what I learned from original topic reply #6 from TB:

"Just looked at the wiring diagrams, and its only one 12v feed from the daytime running "relay", splitting into 2 just before the fuses
F22 and F31."


What plugs should be checked if those fuses contrlos left and right side? Can this be a Fuse problem? Any relays? I do not have diagrams. And MOT next week. Please help.

https://www.omegaowners.com/forum/index.php?topic=147401.msg1957513#msg1957513
Logged

polilara

  • Senior Member
  • ****
  • Offline Offline
  • Gender: Male
  • Finland
  • Posts: 850
    • 2.6 Y26SE Elegance 2001
    • View Profile

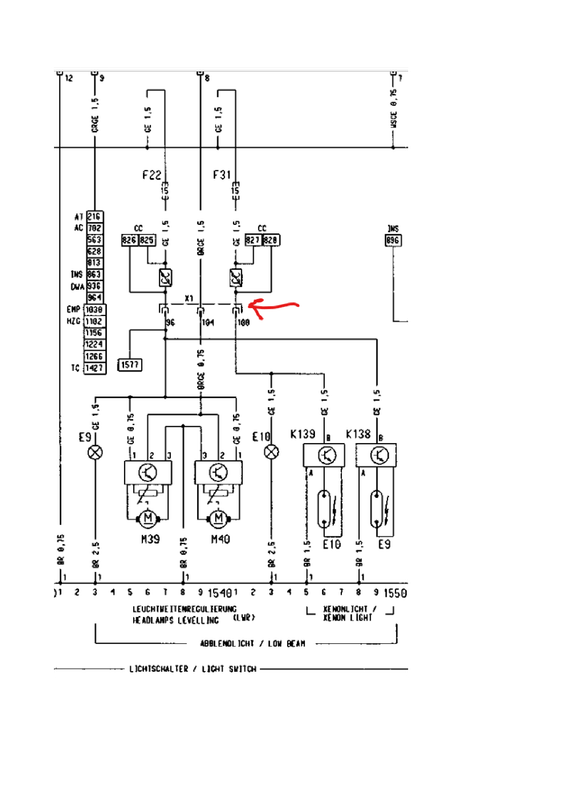

Found one schema. If X1 (red arrow) is a connector having wires 96, 104 and 108 latest 108 leading to E10 Head Light Dipped Beam-Right. If fuses are ok perhaps this connector have a problem. Any idea where it is located?



Logged

Doctor Gollum

  • Get A Life!!
  • *****
  • Offline Offline
  • Gender: Male
  • In a colds and darks puddleses
  • Posts: 25426
  • If you can't eat them, join them...
    • Feetses.
    • View Profile

Remove both kick panels and check the plugs for moisture/corrosion.

X1 should be the larger of the two square plugs on the drivers sides  ;)
Logged
Onanists always think outside the box.

polilara

  • Senior Member
  • ****
  • Offline Offline
  • Gender: Male
  • Finland
  • Posts: 850
    • 2.6 Y26SE Elegance 2001
    • View Profile

Thanks DG, so LH driven car in Finland and Fuse box is in left side  under steering wheel. So that's drivers side for me.  Let' see what I find, I start from fuses although unlikely and continue to kick panels removal.
Logged

polilara

  • Senior Member
  • ****
  • Offline Offline
  • Gender: Male
  • Finland
  • Posts: 850
    • 2.6 Y26SE Elegance 2001
    • View Profile

So left side kick panel off now, never seen so many wires. Maybe 300pc. There are two very large connectors, Green and blue. Green one is larger. Do you mean that I open it? Everything seems neat clean and dry. Never been there earlier. Fuse 31 was ok. Not oxidized. Is there other interesting plus in the right side?
Logged

polilara

  • Senior Member
  • ****
  • Offline Offline
  • Gender: Male
  • Finland
  • Posts: 850
    • 2.6 Y26SE Elegance 2001
    • View Profile

I did not yet continue to right side. I removed fuse box to see if there is something loose behind F31. Seemed Ok. Two Yellow cables were coming from there. Replaced fuse   as it has been there about 22 years. Tried to move it there in and out to polish possible oxidations. Lamp fires every time when cold. I tried 20 times. Strange.
Logged

Doctor Gollum

  • Get A Life!!
  • *****
  • Offline Offline
  • Gender: Male
  • In a colds and darks puddleses
  • Posts: 25426
  • If you can't eat them, join them...
    • Feetses.
    • View Profile

The X1 plug is the last connection before the plug to the ballast.

I would identify the correct pinout for that yellow wire, then split the plug and take a closer look at both sides of the plugs.

If you have any, a spray of contact cleaner won't hurt whilst you're there.

Next step will be the plug at the ballast itself.
« Last Edit: 22 November 2022, 19:06:57 by Doctor Gollum »
Logged
Onanists always think outside the box.

polilara

  • Senior Member
  • ****
  • Offline Offline
  • Gender: Male
  • Finland
  • Posts: 850
    • 2.6 Y26SE Elegance 2001
    • View Profile

The X1 plug is the last connection before the plug to the ballast.

I would identify the correct pinout for that yellow wire, then split the plug and take a closer look at both sides of the plugs.

If you have any, a spray of contact cleaner won't hurt whilst you're there.

Next step will be the plug at the ballast itself.

Thanks for comments, I agree; both X1 and ballast plug can be the root cause for this but how are the joints marked with red circles before X1 physically done and where are they? Is it possible that splitting to two is done inside the Female side of X1. Somewhere have to be joint(s) for this splitting?

Logged

Doctor Gollum

  • Get A Life!!
  • *****
  • Offline Offline
  • Gender: Male
  • In a colds and darks puddleses
  • Posts: 25426
  • If you can't eat them, join them...
    • Feetses.
    • View Profile

They split at the fuse box.
Logged
Onanists always think outside the box.

polilara

  • Senior Member
  • ****
  • Offline Offline
  • Gender: Male
  • Finland
  • Posts: 850
    • 2.6 Y26SE Elegance 2001
    • View Profile

Ok, thanks, both big ones in footwell opened, sprayed with PRF 7-78, connected and opened 5 times each. Now working with ballast plug. How about earthing of the lamp? Where is that point. Might be earthing problem when firing.
Logged

Doctor Gollum

  • Get A Life!!
  • *****
  • Offline Offline
  • Gender: Male
  • In a colds and darks puddleses
  • Posts: 25426
  • If you can't eat them, join them...
    • Feetses.
    • View Profile

From memory, on the chassis rail/inner front wing towards the front corners...

Possibly under the air filter box if right hand...
Logged
Onanists always think outside the box.

polilara

  • Senior Member
  • ****
  • Offline Offline
  • Gender: Male
  • Finland
  • Posts: 850
    • 2.6 Y26SE Elegance 2001
    • View Profile

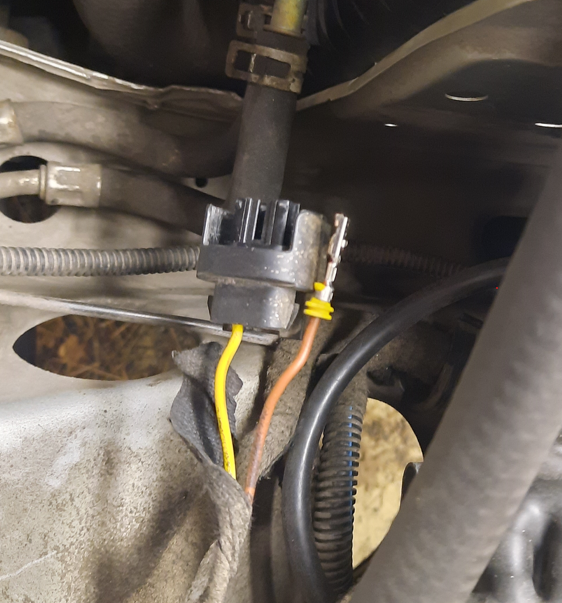

So, completed also with ballast plug, dissasembled the connectors from the plug, one of them seemed to be a bit loose. I bent it "tight" and put it back. I also sprayed another plug in main light having brown thick wire, perhaps earthing the whole lamp? This morning went to MOT 7.00 and both lights fired when engineer started the engine (DLR). So one year more time to find the root cause if still problematic. Thanks for help, can continue this latest next November...

« Last Edit: 24 November 2022, 06:39:54 by polilara »
Logged

Doctor Gollum

  • Get A Life!!
  • *****
  • Offline Offline
  • Gender: Male
  • In a colds and darks puddleses
  • Posts: 25426
  • If you can't eat them, join them...
    • Feetses.
    • View Profile

Mot pass is the important bit as it buys time ;)
Logged
Onanists always think outside the box.

polilara

  • Senior Member
  • ****
  • Offline Offline
  • Gender: Male
  • Finland
  • Posts: 850
    • 2.6 Y26SE Elegance 2001
    • View Profile

Sure, but this morning failure was back. Starting after night ok, but second start when hot right side not firing. After couple of turns of the light switch it fired. Have to change the ballast connector but I think that is not the cause.

I am wondering how the frame of Xenon light is earthed inside the lamp because the whole lamp is fixed to car with plastic ears. There is one connector having three wires; one thick brown and two thinner ones. Thinner ones are most propably + of main beam and parking beam and this brown one is the minus for every part inside. How many wires are inside the thick ballast wire which goes to Xenon bulb, just one or two? If just one then the earthing from the Xenon frame inside the lamp could be a problem. High beam and park is ok.
Logged

Doctor Gollum

  • Get A Life!!
  • *****
  • Offline Offline
  • Gender: Male
  • In a colds and darks puddleses
  • Posts: 25426
  • If you can't eat them, join them...
    • Feetses.
    • View Profile

This may indicate a fault with the switch itself, especially as everything else seems to be in order  :-\
