how do i identify 3.0 cams , thanks

[deviator]

Near the end where the pulley sits there is ring around the shaft that have a letter then a number. EG....
A19
G7
J4

The letter is the cam, the number is apparently the machine used.

[swordfish]

so what will i be looking for on the 3.0 cams

[zirk]

What He said, /\.
3.0 will be G and A
3.2 will be G and J.


[deviator]

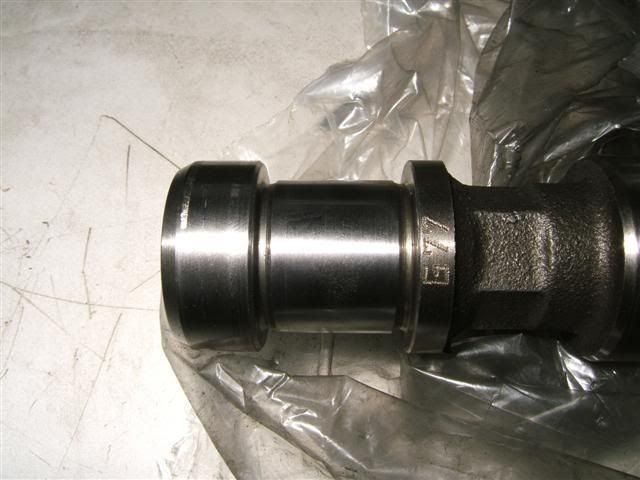

I should add, the number is made up of drilled dots, not cast in the metal, ignore the cast numbers.

Like this....

Picture from here

[zirk]

Yea, good shout with the pic, as there are, as you say, other letters and numbers stamped on the other end of the cam, Ive seen them start with a Gxxxx even though there not G cams. The cams are or were colour coded with a ring colour mark, but guessing the colour faded after a while, hence the stamping as per the pic.

Fairly sure there's a Colour Code Table on the forum somewhere, probably one of Marks DTM early postings.

[deviator]

Yea, good shout with the pic, as there are, as you say, other letters and numbers stamped on the other end of the cam, Ive seen them start with a Gxxxx even though there not G cams. The cams are or were colour coded with a ring colour mark, but guessing the colour faded after a while, hence the stamping as per the pic.

Fairly sure there's a Colour Code Table on the forum somewhere, probably one of Marks DTM early postings.

I saw a colour code table on the linky I posted above.

EDIT (again in the linky above)
C25XE Green(A) Green(A)
X25XE Brown(F) White(E)
X30XE Blue(G) Green(A)

[zirk]

Here's Marks one on OOF.

http://www.omegaowners.com/forum/index.php?topic=90500.0
