Author Topic: Oil deflector  (Read 812 times)

0 Members and 1 Guest are viewing this topic.

John_Clayton

  • Newbie
  • *
  • Offline Offline
  • Great Chart, Ashford, Kent
  • Posts: 45
    • 1998 2.5 V6 Tourer
    • View Profile
Oil deflector
« on: 28 July 2008, 19:30:29 »
I'm in the process of a complete rebuild of my 2.5 litre V6 engine but have a part left over which I can't find a home for. My Parts EPC calls it a "Deflector, Cylinder Block", part no. 90466550. It's a shaped piece of steel, about 8cm long and 5cm deep, with 2 mounting holes and clearly fits somewhere where it's covered in oil. The metal is identical in thickness to that of the Baffle Plate which fits below the crankshaft. However, I've searched and searched but can't find where it goes. I can email a photo if required. I was hoping to attach it here but that doesn't seem possible.
Logged
John Clayton

psychnurse

  • Omega Baron
  • *****
  • Offline Offline
  • Gender: Male
  • Leominster, Herefordshire
  • Posts: 2047
  • Whats in the fridge today? Beer and Sausages....UM
    • View Profile
Re: Oil deflector
« Reply #1 on: 28 July 2008, 19:38:46 »
Photobucket or the like mate  :y

Cant help you Im affraid... could be anything as far as I am concerned  :D
Logged

feeutfo

  • Guest
Re: Oil deflector
« Reply #2 on: 29 July 2008, 00:23:24 »
Save it in photo bucket then paste the link between the
2 image brakets,  when youve clicked on the
 image icon. It does work that way honest.
Logged

John_Clayton

  • Newbie
  • *
  • Offline Offline
  • Great Chart, Ashford, Kent
  • Posts: 45
    • 1998 2.5 V6 Tourer
    • View Profile
Re: Oil deflector
« Reply #3 on: 29 July 2008, 09:57:43 »

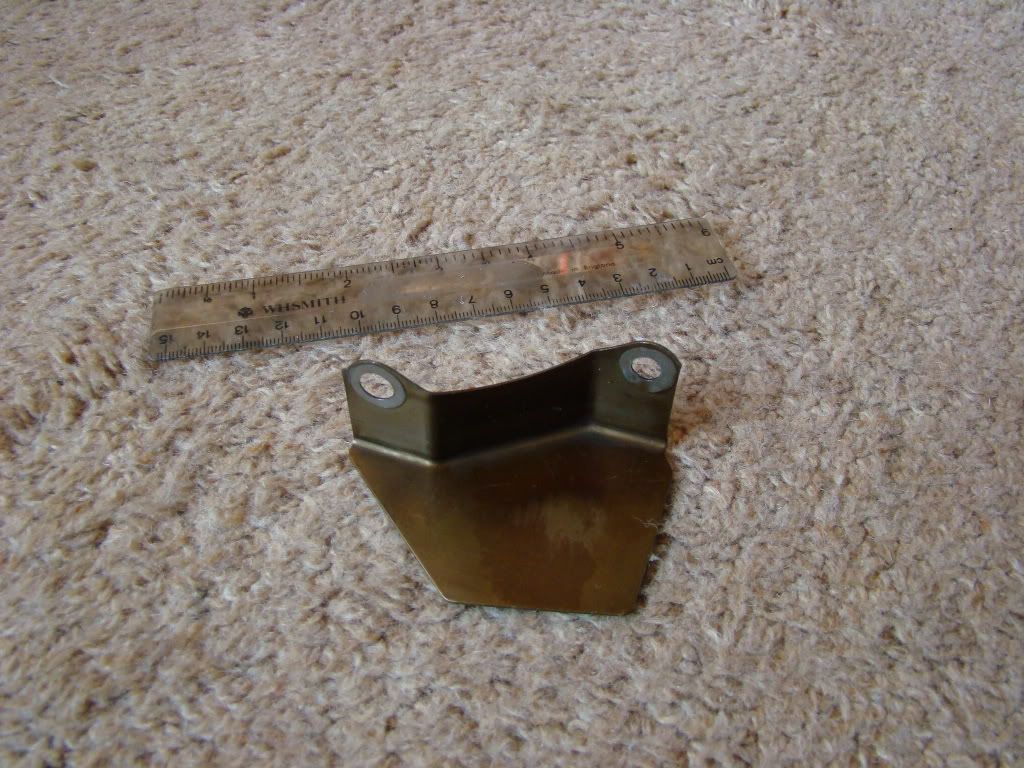

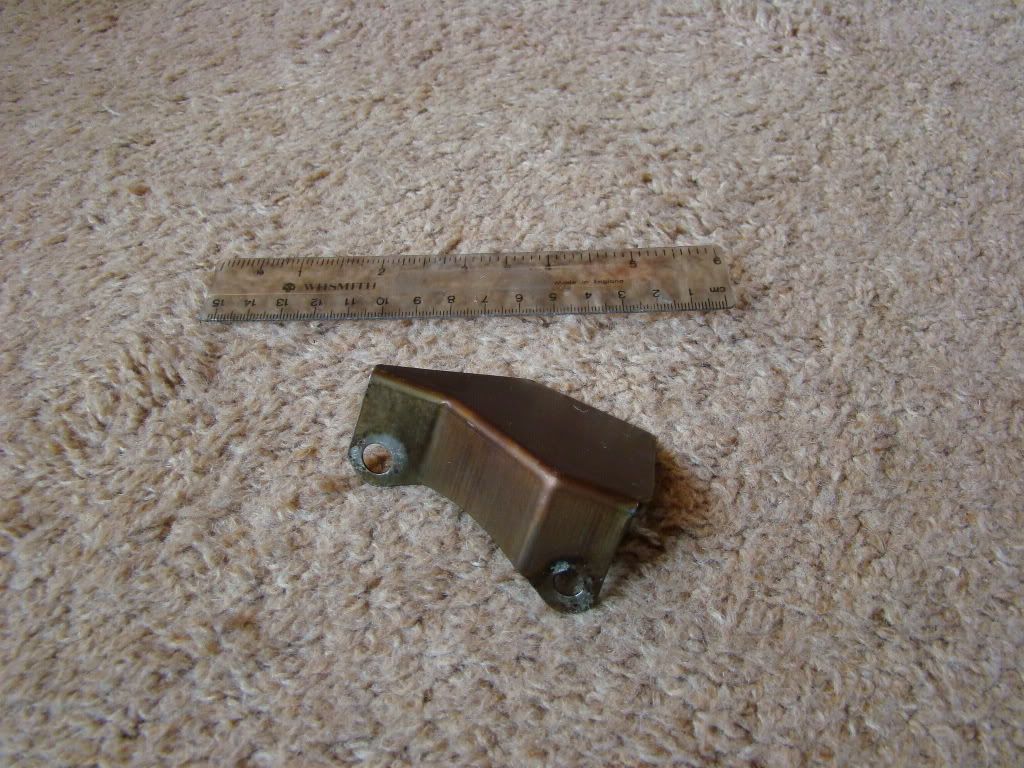

I'd never heard of photobucket but due to the wonders of Google I have now! Here's a couple of photos http://i46.photobucket.com/albums/f141/hollis583/DSC01087.jpg"

http://i46.photobucket.com/albums/f141/hollis583/DSC01086.jpg"
Logged
John Clayton

Andy B

  • Get A Life!!
  • *****
  • Offline Offline
  • Gender: Male
  • Bury Lancs
  • Posts: 39768
    • ML350 TDM SmartRoadster
    • View Profile
Re: Oil deflector
« Reply #4 on: 29 July 2008, 10:10:27 »
Quote
I'd never heard of photobucket but due to the wonders of Google I have now! Here's a couple of photos http://i46.photobucket.com/albums/f141/hollis583/DSC01087.jpg"

http://i46.photobucket.com/albums/f141/hollis583/DSC01086.jpg"

If, after you've pasted the link, you hightlight it & use the 'image' buttton, you'll post the actual picture rather than the link.  ;)

Logged

John_Clayton

  • Newbie
  • *
  • Offline Offline
  • Great Chart, Ashford, Kent
  • Posts: 45
    • 1998 2.5 V6 Tourer
    • View Profile
Re: Oil deflector
« Reply #5 on: 29 July 2008, 19:32:53 »
Thanks for the tip. I'm trying to do that with the second photo. Fingers crossed. I'm still after suggestions as to where the part fits.

Logged
John Clayton

Marks DTM Calib

  • Administrator
  • *****
  • Offline Offline
  • Gender: Male
  • West Bridgford
  • Posts: 34010
  • Git!
    • View Profile
Re: Oil deflector
« Reply #6 on: 29 July 2008, 19:49:30 »
John, what year of engine is it.

I dont recognise the part so wonder if its an early engine....
Logged

John_Clayton

  • Newbie
  • *
  • Offline Offline
  • Great Chart, Ashford, Kent
  • Posts: 45
    • 1998 2.5 V6 Tourer
    • View Profile
Re: Oil deflector
« Reply #7 on: 29 July 2008, 19:59:09 »
I assume the engine is the original 1997 one. Its number is 08169122.
The VIN is WOL000021V1108402.

As mentioned in another post, there were no valve seals installed. Were they only introduced on later engines, I wonder?
Logged
John Clayton
