Pinouts on leccy window switches
« on: 23 April 2009, 16:08:42 »
As title thread. I`m trying to trace the 0ve and the feed for the switch illuminations on a facelift. Any ideas chaps (or chappesses) :question
Logged
All that is necessary for the triumph of evil is that good men do nothing.

UPVC windows/doors/fascias/soffit/gutters supplied/fitted

Marks DTM Calib

  • Administrator
  • *****
  • Offline Offline
  • Gender: Male
  • West Bridgford
  • Posts: 34012
  • Git!
    • View Profile
Re: Pinouts on leccy window switches
« Reply #1 on: 24 April 2009, 08:26:16 »

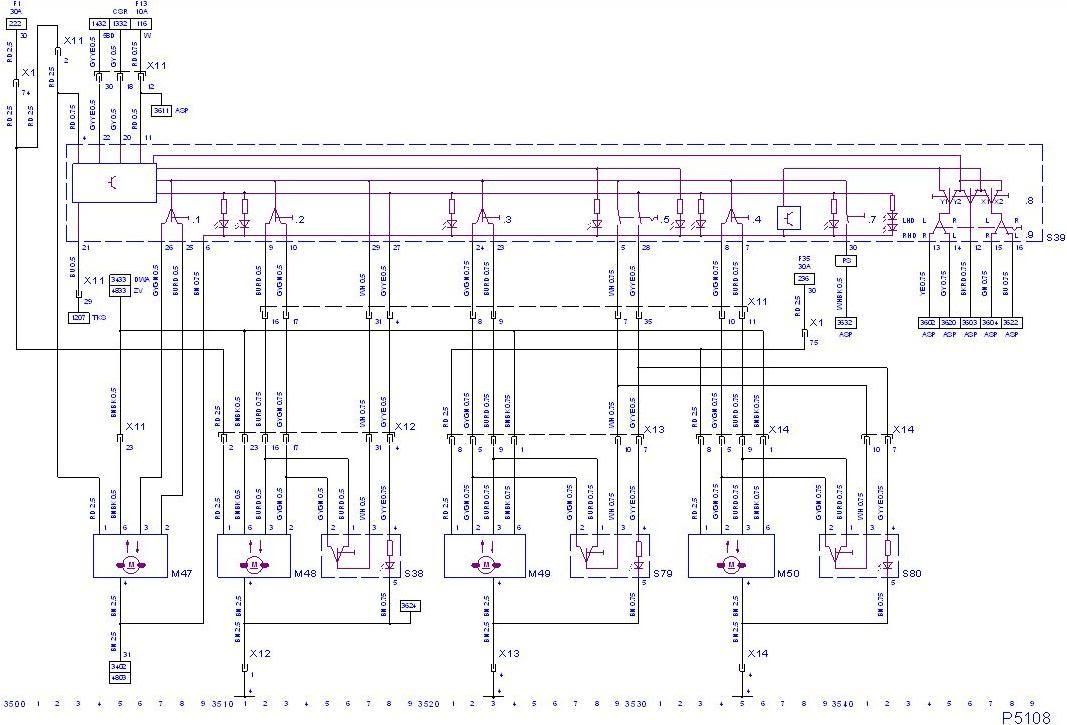

Schematic here:

Logged

Marks DTM Calib

  • Administrator
  • *****
  • Offline Offline
  • Gender: Male
  • West Bridgford
  • Posts: 34012
  • Git!
    • View Profile
Re: Pinouts on leccy window switches
« Reply #2 on: 24 April 2009, 08:30:39 »
Note that pin 20 and 22 are lighting related (one from the multitimer and one from thedimming control)
Logged

RobG

  • Omega Queen
  • *****
  • Offline Offline
  • Gender: Male
  • Bristol
  • Posts: 13831
  • I might have a link, pic or part number for that
    • 16 plate Mokka. Vivaro
    • View Profile
Re: Pinouts on leccy window switches
« Reply #3 on: 24 April 2009, 13:10:28 »
Cheers Mark :y
