With everyone going to the lakes this weekend i thought i would ask this early as i dont want to be stuck changing a few bits this weekend coming.

I need acouple of Torque Settings

Rear Shocks (If I do Them)
WishBones
Track Rods Both ends
Brake Disks
Steering Idler (If I Need to do it)

I know there are acouple of settings on the forum, IE brake stuff.

Thanks

[omegalyn]

Hi there
I shall look in Haynes tonight after work if no one els posts them.

[Dave-C]

Recommended Torque Values

Caution

Angle specifications refer to yield limit controlled fastening bolts, which may only be used once. Tighten fastening bolts only with the appropriate torque and then turn further by the specified angle.

  Nm

Exhaust gas recirculation valve and front bracket to auxiliary aggregates holder
 20

Airbag unit to steering wheel
 8

Outer tie rods to centre tie rod
 60

Electro-hydraulic converter to steering gear
 2.9

Retaining bow, fluid reservoir to spring strut dome
 7

Retaining strap on power assisted steering pump
 20

Retaining shackle to cylinder block
 20

Bracket, hydraulic modulator to front frame side member
 10

Bracket, idler to front frame side member
 55 + 75° + 15°

Brackets, cooling loop to strut
 4

Power assisted steering hydraulic lines to power assisted steering pump
 28

Power assisted steering hydraulic lines to power assisted steering pump (diesel engine)
 37.5

Clamp bolt to steering gear
 22

Clamp bolt to steering shaft
 22

Steering gear to front frame side member
 55

Steering wheel to steering shaft
 20 1)

Steering arm to steering shaft
 160

Steering column with bracket to bulkhead
 22

Idler to bracket
 60

Centre tie rod to steering arm
 60

Centre tie rod to idler
 60

Engine damping block
 40

Nut, bracket – steering column support
 22

Auxiliary aggregates holder to cylinder block
 40

Power steering pump to support (X 20 DTH)
 20

Power assisted steering pump to auxiliary aggregates holder (4 cylinder engine)
 25

Power assisted steering pump to auxiliary aggregates holder (6 cylinder engine)
 20

Belt pulley to power assisted steering pump
 20

Return line to engine transport shackle
 4

Tie rod end to steering knuckle
 60

Tie rod end to centre tie rod
 60

Steering column support to bracket
 22

Sleeve nut, power assisted steering hydraulic lines to screwed socket
 18

Sleeve nut, power assisted steering hydraulic lines to steering gear
 28

Front exhaust pipe
 20

Heat shield to upper steering gear
 8

Heat shield to lower steering gear
 15

Hydraulic unit heat shield to holder
 8



--------------------------------------------------------------------------------
1 ) Tighten fastening nut to 20 Nm/15 lbf. ft., then release by 90° and re-tighten to 20 Nm/15 lbf. ft.

Hope this helps  DC 8-)

[Dave-C]

Also:::::
Recommended Torque Values – Brakes

Caution

Angle specifications refer to yield limit controlled fastening bolts, which may only be used once. Tighten fastening bolts only with the appropriate torque and then turn further by the specified angle.


 Nm

Cover plate to steering knuckle (front wheel brake)
 4

Brake servo to support (nuts)
 21

Front brake caliper to brake carrier
 30

Rear brake caliper to semi-trailing arm
 80

Brake disc to front or rear wheel hub (lock bolt)
 4

Bracket to steering knuckle
 95 + 30° + 15 1)

Brake backing plate to rear axle
 4

ESP pressure sensor to hydraulic modulator
 20

Bleeder screw to brake caliper
 9

Yaw rate/acceleration sensor to retaining plate
 8

Parking brake lever to vehicle underbody (bolts)
 20

Bracket for hydraulic modulator to front frame side member
 10

Propshaft centre bearing bracket to vehicle underbody
 20

ABS/TC control unit bracket to hydraulic modulator
 8

Brake master cylinder to brake servo
 22

Rear exhaust pipes to catalytic converter
 25

Banjo bolt, brake pressure hose to brake caliper
 40

Hydraulic modulator to bracket (nuts)
 8

Fork lock nut to brake servo piston rod
 21

Centre exhaust pipes to catalytic converter, V6
 25

Pedal axle to pedal support
 18

Pedal support to bulkhead
 20

Wheel to wheel hub
 110

Wheel sensor to rear differential
 8

Wheel bolts to front/rear wheel hub
 110

Parking brake telltale switch to parking brake lever
 2.5

ABS/TC control unit to bracket
 1.5

Union nut to intake manifold
 18

Union nuts for all brake lines
 16

Hydraulic modulator heat shield to bracket
 8



--------------------------------------------------------------------------------
1) Insert new fastening bolts with locking compound.


[Dave-C]

and for good measure_____

Recommended Torque Values

Caution

Torque values deal with yield limit-controlled retaining screws which may be only be used once. Only tighten retaining screws to the appropriate torque and then continue to tighten by the amount specified.

  Nm

Drive shaft to wheel journal flange
 50 + 60° + 15°

Brake calliper to semi-trailing arm
 80

Brake disc to wheel hub
 4

Brake carrier to semi-trailing arm
 50 + 30° + 15°

Damping blocks to vehicle underbody
 65

Damping blocks to rear axle body
 90 + 30° + 15°

Cover on locking differential housing
 14

Single disc joint to propshaft flange M10 x 1.25 (Torx)
 50 + 45° + 15°

Single disc joint to propshaft flange M12 x 1.5
 95

Single disc joint to transmission/rear differential flange M10 x 1.25 (Torx)
 50 + 75° + 15°

Single disc joint to transmission/rear differential flange M12 x 1.5
 95

Bracket to rear differential
 90 + 45° + 15°

Bracket to vehicle level control sensor
 4

Centre bearing bracket
 22

Centre bearing bracket to vehicle underbody
 20

Bracket with level control sensor to rear axle body
 12

Bracket with compressor to wheel well
 12

Rear differential, rear, to front axle body
 90 + 30° + 15°

Rear differential, front, to rear axle body
 100 + 75° + 15°

Rear differential cover to rear differential
 60

Rear axle body damping bushing to vehicle underbody
 125

Clamps to auxiliary control arm
 15

Level control system compressor to bracket
 4

Swing arm to semi-trailing arm
 20

Wheel on wheel hub
 110

Wheel sensor on transmission cover
 7

Wheel journal flange to wheel journal
 3001)

Semi-trailing arm to rear axle body
 100

Headlamp range control sensor to rear axle body
 10

Stabiliser to rear axle body
 22

Shock absorber to semi-trailing arm
 110

Shock absorber fastening nut on piston rod
 20

Strut for rear axle body to vehicle underbody
 65

Ring gear to differential/limited slip differential M10
 75

Ring gear to differential/limited slip differential M12
 115

Closure bolt of the rear differential
 22 + 90° + 180°

Front muffler to catalytic converter
 25

Auxiliary control arm to rear axle body
 901)

Auxiliary control arm to semi-trailing arm
 45



--------------------------------------------------------------------------------
1) use new self-locking fastening nut
  DC

[omegalyn]

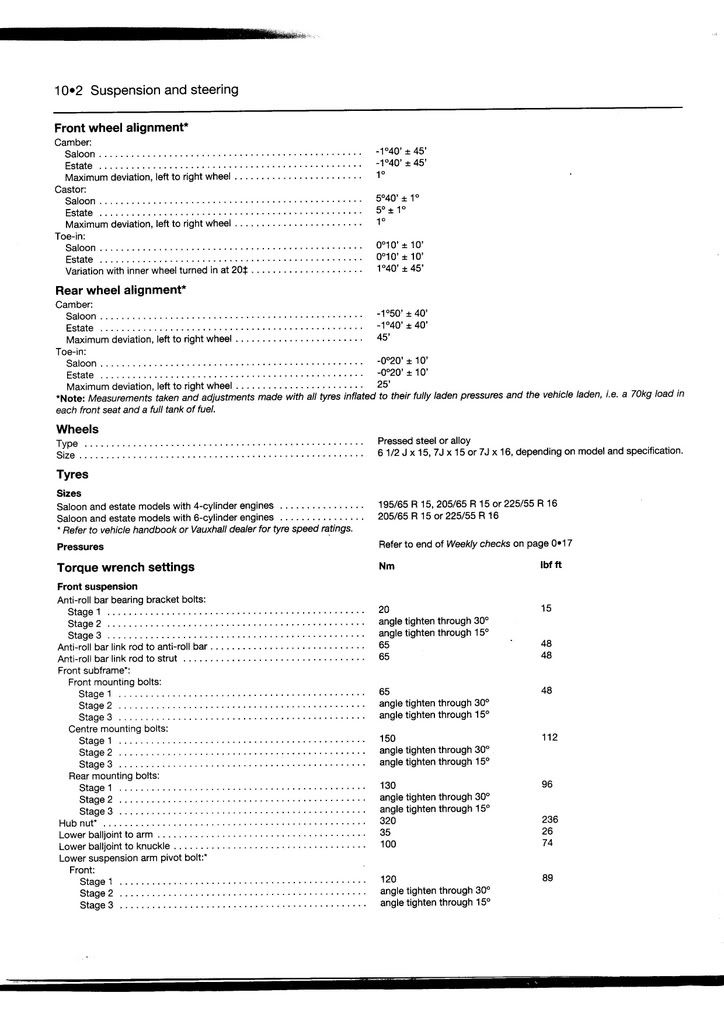

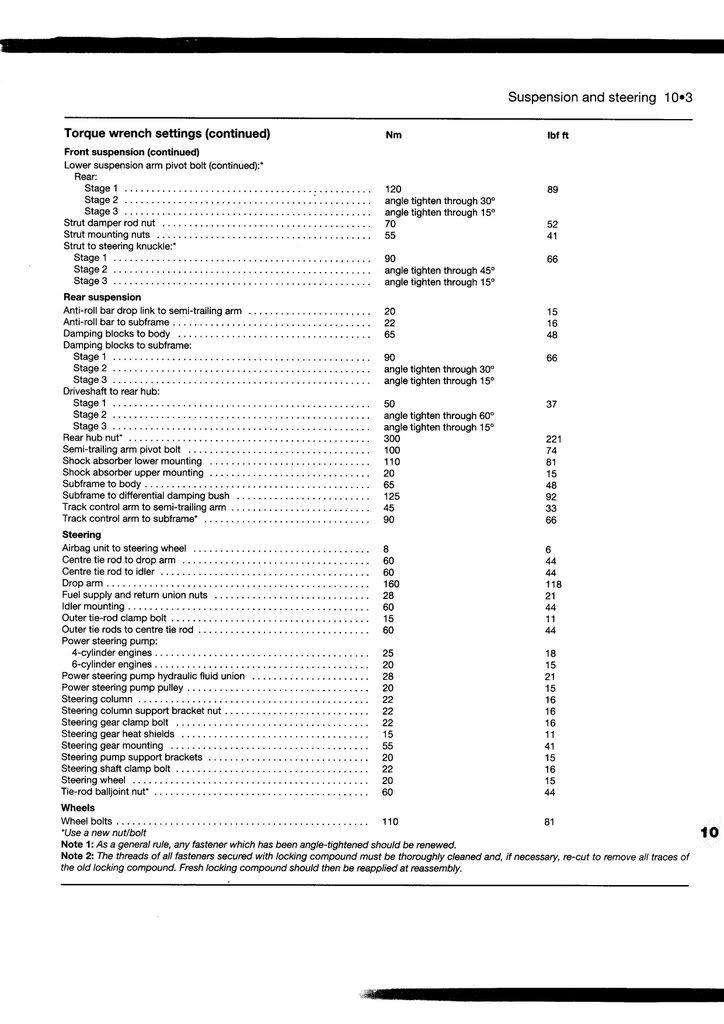

Glad to see Dave has done a great job, just wanted to see if this works, new to photobucket :-?  scaned from 1994 to 1999 haynes manual.

[Craig_R]

WOW thanks dave c and Omegalyn

I have all the Torque settings i need to strip the car now

Thanks Again

Craig

[Dave-C]

WOW thanks dave c and Omegalyn

I have all the Torque settings i need to strip the car now

Thanks Again

Craig

Our pleasure...

DC
