Re: Dash Lights
« Reply #75 on: 01 September 2009, 17:43:49 »
Quote
Quote
tried that earlier, was told that pin 58d was the dimmer control circuit put a 12v feed to that and the bridge wire started to get warm so disconnected it before any damage was done

I was thinking more along the lines of connecting directly to a bulb, so that you could eliminate any control circuitry in the test and to make sure that the circuit itself was free from shorts and illuminated.

At least that way you could track backwards to see at which point you are losing the supply voltage

 :-/


If my theory is right, that may do more damage than it cures :(
Logged
Grumpy old man

TheBoy

  • Administrator
  • *****
  • Offline Offline
  • Gender: Male
  • Brackley, Northants
  • Posts: 106849
  • I Like Lockdown
    • Whatever Starts
    • View Profile
Re: Dash Lights
« Reply #76 on: 01 September 2009, 17:44:43 »
Quote
Quote
One last little test. Do the rear fog lights work (engine running, lights on, rear fogs on)

yes, they work as do the fronts :y
Right, excellent.

Do you have a reasonable multimeter?
Logged
Grumpy old man

Ratty

  • Intermediate Member
  • ***
  • Offline Offline
  • Gender: Male
  • Coventry
  • Posts: 316
    • '99 2.5 CDX Mini-FL Est
    • View Profile
Re: Dash Lights
« Reply #77 on: 01 September 2009, 17:47:24 »
it's a cheapo digital one like this...

Logged
John

Dave DND

  • Omega Baron
  • *****
  • Offline Offline
  • Gender: Male
  • DND Services Ltd
  • Posts: 4216
    • Paignton, Devon
    • View Profile
    • DND Services Ltd
Re: Dash Lights
« Reply #78 on: 01 September 2009, 17:50:05 »
Quote
it's a cheapo digital one like this...


No mate, thats not a cheapo meter - what you have there is absolutely perfect

As long as you know how to use it

 :y
Logged
Radio & Decoding Technician
In Car Audio Service Department
www.dndservices.co.uk

TheBoy

  • Administrator
  • *****
  • Offline Offline
  • Gender: Male
  • Brackley, Northants
  • Posts: 106849
  • I Like Lockdown
    • Whatever Starts
    • View Profile
Re: Dash Lights
« Reply #79 on: 01 September 2009, 17:54:08 »
Quote
it's a cheapo digital one like this...

that is ideal :y

Right, go pull out headlight switch, I'll post up diagram of where to stick it, ooo-err missus
Logged
Grumpy old man

Ratty

  • Intermediate Member
  • ***
  • Offline Offline
  • Gender: Male
  • Coventry
  • Posts: 316
    • '99 2.5 CDX Mini-FL Est
    • View Profile
Re: Dash Lights
« Reply #80 on: 01 September 2009, 17:56:07 »
 :-[

oki koki :D
Logged
John

TheBoy

  • Administrator
  • *****
  • Offline Offline
  • Gender: Male
  • Brackley, Northants
  • Posts: 106849
  • I Like Lockdown
    • Whatever Starts
    • View Profile
Re: Dash Lights
« Reply #81 on: 01 September 2009, 18:03:47 »

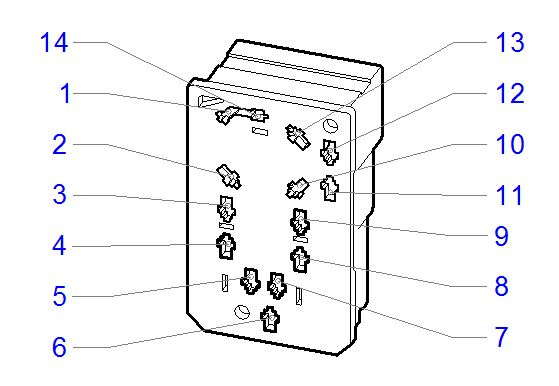

This is the loom side of plug (I think, the switch itself has the male connectors on?)



With meter on 200ohms setting, what do you get between pins 9 and 12 on loom side connector?
Logged
Grumpy old man

TheBoy

  • Administrator
  • *****
  • Offline Offline
  • Gender: Male
  • Brackley, Northants
  • Posts: 106849
  • I Like Lockdown
    • Whatever Starts
    • View Profile
Re: Dash Lights
« Reply #82 on: 01 September 2009, 18:05:00 »
expecting a short....
Logged
Grumpy old man

Ratty

  • Intermediate Member
  • ***
  • Offline Offline
  • Gender: Male
  • Coventry
  • Posts: 316
    • '99 2.5 CDX Mini-FL Est
    • View Profile
Re: Dash Lights
« Reply #83 on: 01 September 2009, 18:10:11 »
ign on or off?
Logged
John

TheBoy

  • Administrator
  • *****
  • Offline Offline
  • Gender: Male
  • Brackley, Northants
  • Posts: 106849
  • I Like Lockdown
    • Whatever Starts
    • View Profile
Re: Dash Lights
« Reply #84 on: 01 September 2009, 18:12:40 »
Quote
ign on or off?
off
Logged
Grumpy old man

Ratty

  • Intermediate Member
  • ***
  • Offline Offline
  • Gender: Male
  • Coventry
  • Posts: 316
    • '99 2.5 CDX Mini-FL Est
    • View Profile
Re: Dash Lights
« Reply #85 on: 01 September 2009, 18:18:14 »
it shows 00.6 which i would assume means short
Logged
John

TheBoy

  • Administrator
  • *****
  • Offline Offline
  • Gender: Male
  • Brackley, Northants
  • Posts: 106849
  • I Like Lockdown
    • Whatever Starts
    • View Profile
Re: Dash Lights
« Reply #86 on: 01 September 2009, 18:44:18 »
Quote
it shows 00.6 which i would assume means short
sadly, what i expected.

Right, remove ashtray, remove radio (inc any adapters in use to get it to fit Omega loom), disconnect snow switch and gearbox selction panel.

Then remeasure
Logged
Grumpy old man

TheBoy

  • Administrator
  • *****
  • Offline Offline
  • Gender: Male
  • Brackley, Northants
  • Posts: 106849
  • I Like Lockdown
    • Whatever Starts
    • View Profile
Re: Dash Lights
« Reply #87 on: 01 September 2009, 18:44:41 »
i think you can see where we are going with this :(
Logged
Grumpy old man

TheBoy

  • Administrator
  • *****
  • Offline Offline
  • Gender: Male
  • Brackley, Northants
  • Posts: 106849
  • I Like Lockdown
    • Whatever Starts
    • View Profile
Re: Dash Lights
« Reply #88 on: 01 September 2009, 18:46:07 »
I'd go out and measure mine for comparison, but don't feel too good, so sat here with glass of water, and ain't moving for anyone  :-[
Logged
Grumpy old man

Ratty

  • Intermediate Member
  • ***
  • Offline Offline
  • Gender: Male
  • Coventry
  • Posts: 316
    • '99 2.5 CDX Mini-FL Est
    • View Profile
Re: Dash Lights
« Reply #89 on: 01 September 2009, 18:47:57 »
Quote
i think you can see where we are going with this :(


Not quite sure, the instrument panel?
Logged
John
