Here is an interesting concept....
« on: 19 October 2009, 14:50:46 »

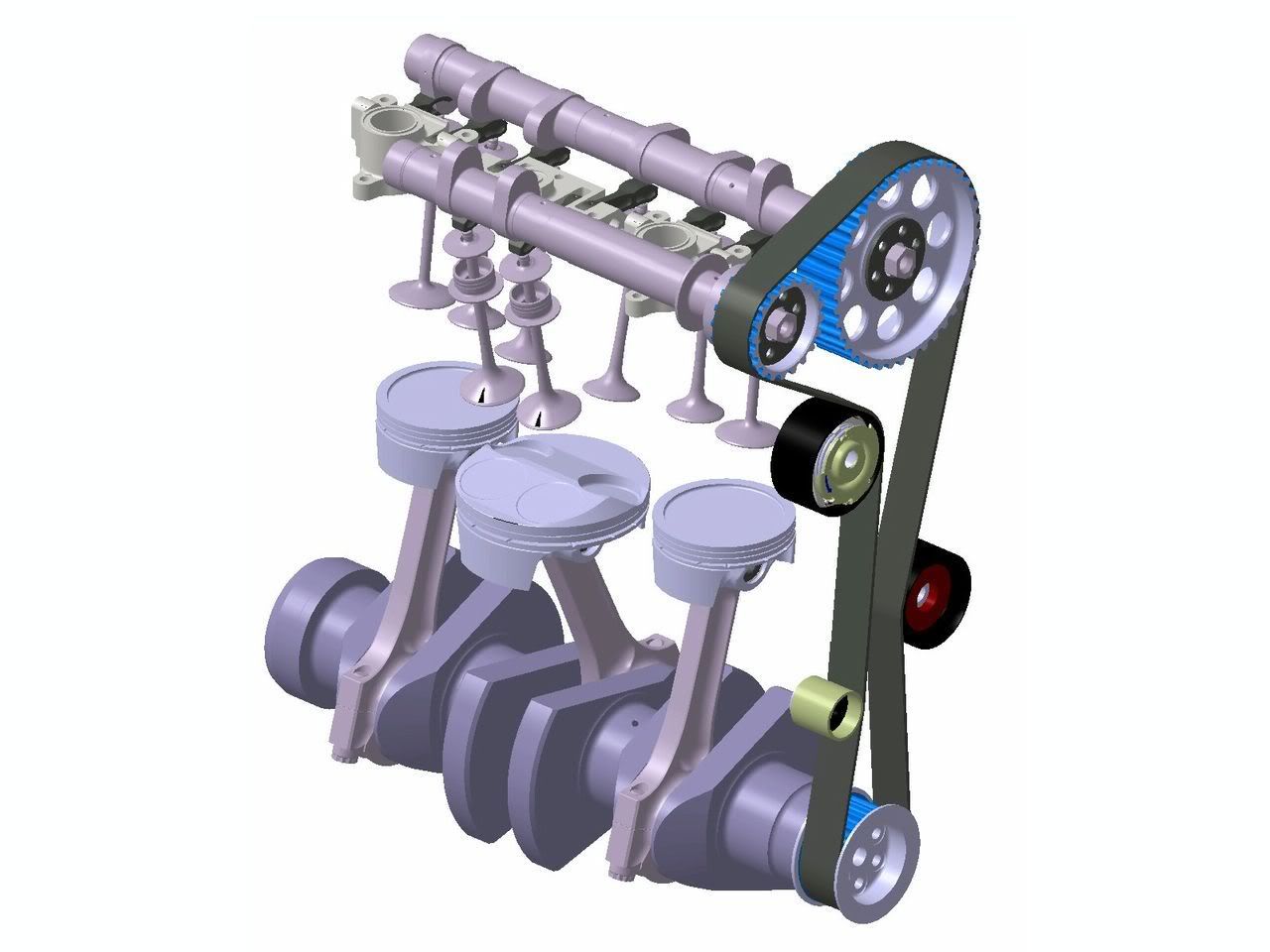

.....can anybody guess whats special about this engine type?

Logged

Tony H

  • Omega Baron
  • *****
  • Offline Offline
  • Gender: Male
  • liverpool
  • Posts: 4940
  • Black Elites are luurvley
    • View Profile
Re: Here is an interesting concept....
« Reply #1 on: 19 October 2009, 14:59:03 »
Surely with differant size cam pullys the valve timing is going to be all over the place :-/
Logged
Be aware of mole holes be very aware!

Nickbat

  • Guest
Re: Here is an interesting concept....
« Reply #2 on: 19 October 2009, 15:02:28 »
The middle cylinder appears to be designed to act as two cylinders, so maybe it fires twice on the cycle. i.e maybe the firing order would be 1213 or such like. Like a V4 but smaller.

I'm wrong aren't I?  :-[ :-X
Logged

albitz

  • Guest
Re: Here is an interesting concept....
« Reply #3 on: 19 October 2009, 15:06:49 »
and No.1 and 3 cylinders seem to be missing 2 valves per cylinder,unless its just drawn that way to make it easier to see other details on the drawing. :-/
It looks like one camshaft is going to turn a lot faster than the other,cant think why though,probably something to do with emissions,isnt everything these days. :-/
Logged

Martin_1962

  • Guest
Re: Here is an interesting concept....
« Reply #4 on: 19 October 2009, 15:07:30 »
Quick guess - 2 stroke with compounding
Logged

Elite Pete

  • Omega Queen
  • *****
  • Offline Offline
  • Gender: Male
  • Chester
  • Posts: 19580
  • My spider senses are tingling
    • Audi SQ5 GSX1400
    • View Profile
Re: Here is an interesting concept....
« Reply #5 on: 19 October 2009, 15:07:46 »
Looks like a 2 stroke and 4 stroke combined :-?
Logged
Retired

Kevin Wood

  • Global Moderator
  • *****
  • Offline Offline
  • Gender: Male
  • Alton, Hampshire
  • Posts: 36417
    • Jaguar XE 25t, Westfield
    • View Profile
Re: Here is an interesting concept....
« Reply #6 on: 19 October 2009, 15:09:30 »
Hmm. I'd be interested to see the manifolds.

Looks like an idea from the age of steam re-hashed if I'm on the right lines...

Either that or the chap who did the valvegear had had one too many.

Kevin
Logged
Tech2 services currently available. See TheBoy's price list: http://theboy.omegaowners.com/

Andy H

  • Omega Lord
  • *****
  • Offline Offline
  • Gender: Male
  • Auckland
  • Posts: 5533
    • Mazda MPV
    • View Profile
Re: Here is an interesting concept....
« Reply #7 on: 19 October 2009, 15:11:58 »
Variation on a two stroke? Single central piston acts as the crankcase would on a two stroke but the engine doesn't have to run a total loss oiling system and the piston rings don't get chewed up due to transfer ports in the side of the barrel?

Thinking a bit harder.....
The two outer pistons will behave like a (japanese) 4 stroke parallel twin and the big central piston will force charge air into alternate pistons.
Logged
"Deja Moo - The feeling that you've heard this bull somewhere before."

Tony H

  • Omega Baron
  • *****
  • Offline Offline
  • Gender: Male
  • liverpool
  • Posts: 4940
  • Black Elites are luurvley
    • View Profile
Re: Here is an interesting concept....
« Reply #8 on: 19 October 2009, 15:13:13 »
Looking at the crank arrangement it alternates between fireing on the two outside cylinders at the same time and firing on the centre cylinder.
Logged
Be aware of mole holes be very aware!

Kevin Wood

  • Global Moderator
  • *****
  • Offline Offline
  • Gender: Male
  • Alton, Hampshire
  • Posts: 36417
    • Jaguar XE 25t, Westfield
    • View Profile
Re: Here is an interesting concept....
« Reply #9 on: 19 October 2009, 15:13:27 »
Quote
Quick guess - 2 stroke with compounding

I think you're half way there..  :P

Kevin
Logged
Tech2 services currently available. See TheBoy's price list: http://theboy.omegaowners.com/

Kevin Wood

  • Global Moderator
  • *****
  • Offline Offline
  • Gender: Male
  • Alton, Hampshire
  • Posts: 36417
    • Jaguar XE 25t, Westfield
    • View Profile
Re: Here is an interesting concept....
« Reply #10 on: 19 October 2009, 15:14:30 »
This is what it brought to mind for me...

http://en.wikipedia.org/wiki/Steam_engine#Multiple_expansion_engines

Kevin
Logged
Tech2 services currently available. See TheBoy's price list: http://theboy.omegaowners.com/

Martin_1962

  • Guest
Re: Here is an interesting concept....
« Reply #11 on: 19 October 2009, 15:14:49 »
Ideas

Cylinder 2 is the compressor, 1 & 3 are the power cylinders

or

Cylinder 1 and 2 are high pressure and cylinder 2 low pressure
Logged

Kevin Wood

  • Global Moderator
  • *****
  • Offline Offline
  • Gender: Male
  • Alton, Hampshire
  • Posts: 36417
    • Jaguar XE 25t, Westfield
    • View Profile
Re: Here is an interesting concept....
« Reply #12 on: 19 October 2009, 15:15:56 »
Quote
Ideas

Cylinder 2 is the compressor, 1 & 3 are the power cylinders

or

Cylinder 1 and 2 are high pressure and cylinder 2 low pressure

Looking at how the cams are arranged I'd say the latter.  :y

Kevin
Logged
Tech2 services currently available. See TheBoy's price list: http://theboy.omegaowners.com/

Kevin Wood

  • Global Moderator
  • *****
  • Offline Offline
  • Gender: Male
  • Alton, Hampshire
  • Posts: 36417
    • Jaguar XE 25t, Westfield
    • View Profile
Re: Here is an interesting concept....
« Reply #13 on: 19 October 2009, 15:20:00 »
Hmm. It's actually rather clever. The efficiency of a high compression ratio, without the losses or the detonation issues.

Kevin


Logged
Tech2 services currently available. See TheBoy's price list: http://theboy.omegaowners.com/

albitz

  • Guest
Re: Here is an interesting concept....
« Reply #14 on: 19 October 2009, 15:21:40 »
Quote
Looks like a 2 stroke and 4 stroke combined :-?
A 2 stroke wouldnt have a pair of valves per cylinder though. :-/
Logged
