Author Topic: no idea hopefully someone can help?  (Read 17449 times)

0 Members and 1 Guest are viewing this topic.

russ0205

  • Senior Member
  • ****
  • Offline Offline
  • Gender: Male
  • northants
  • Posts: 563
    • mondeo
    • View Profile
Re: no idea hopefully someone can help?
« Reply #45 on: 21 December 2010, 19:07:41 »
Is your saab 93 pre 2000 ?? if it is the tool will not work as it only works from when vauxhall got there mits into the 93 production after that date,found out the hard way myself had a 98 saab 93 some years ago. ;D
Logged

griff2494

  • Junior Member
  • **
  • Offline Offline
  • Gender: Male
  • fallingbostal,germany
  • Posts: 135
    • View Profile
Re: no idea hopefully someone can help?
« Reply #46 on: 21 December 2010, 19:34:57 »
YES IT IS ITS A 1999 BUT END OF DAY I BOUGHT IT FOR THE OMEGA SO IF IT WAS TO WORK ON THE SAAB HAPPY DAYS IF NOT NEVER MIND :-(
Logged

griff2494

  • Junior Member
  • **
  • Offline Offline
  • Gender: Male
  • fallingbostal,germany
  • Posts: 135
    • View Profile
Re: no idea hopefully someone can help?
« Reply #47 on: 29 December 2010, 19:16:24 »
hi all again

right my "My Naff Code Reader" reader arrived today :-)

not sure realy how to use it :-( on the engine bit theres loads of codes and not sure which is for mine but heres what it came up with
the engine faults are at the bottom ,but i dont no the codes yet,i will do some searching

"My Naff Code Reader" 100219a - PC based diagnostic tool

hkj

"My Naff Code Reader" - KW2000 Communication Window> 2002 (2)|Omega-B|Engine|Z 22 XE

Keyword #1: EF
Keyword #2: 8F

Normal timing parameter set.

systemSupplierSpecific: L
VIN: W0L0VBF6921010923
vehicleManufacturerECUHardwareNumber 24426542 DG
systemSupplierECUHardwareNumber: SIE  0116004300
systemSupplierECUSoftwareNumber: 6586115108
systemSupplierECUSoftwareVersionNumber: 0800
exhaustRegulationOrTypeApprovalNumber: S01003
systemNameOrEngineType:  Z22XE
RepairShopCodeOrTesterSerialNumber:  S001002194
ProgrammingDate:  20041021

Identifier: 161D

CalibrationDate: O10D101C
CalibrationEquipmentSoftwareNumber: L2CD100A
ECUInstallationDate: 6586055204
VehicleManufacturerSpecific: 3200

Negative answer to service 0x30
The reason is: 0x22
conditionsNotCorrectOrRequestSequenceError


Negative answer to service 0x30
The reason is: 0x22
conditionsNotCorrectOrRequestSequenceError


Negative answer to service 0x30
The reason is: 0x22
conditionsNotCorrectOrRequestSequenceError


Negative answer to service 0x30
The reason is: 0x22
conditionsNotCorrectOrRequestSequenceError


Negative answer to service 0x30
The reason is: 0x22
conditionsNotCorrectOrRequestSequenceError


Negative answer to service 0x30
The reason is: 0x12
SubFunctionNotSupported-invalidFormat



Total number of fault codes: 2

P1700 - SVS request via CAN
 (00) - Present

P0303 - Cylinder 3 Misfire Detected
 (01) - Not present

what code on the engine page should i be using for my 2002 2.2 sport (ecotec engine)


« Last Edit: 29 December 2010, 19:25:39 by griff2494 »
Logged

PhilRich

  • Omega Queen
  • *****
  • Offline Offline
  • Gender: Male
  • A bit further North of the Back of Beyond!
  • Posts: 10338
    • Mk 2 Volvo V70
    • View Profile
Re: no idea hopefully someone can help?
« Reply #48 on: 29 December 2010, 20:26:10 »
Quote
hi all again

right my "My Naff Code Reader" reader arrived today :-)

not sure realy how to use it :-( on the engine bit theres loads of codes and not sure which is for mine but heres what it came up with
the engine faults are at the bottom ,but i dont no the codes yet,i will do some searching

"My Naff Code Reader" 100219a - PC based diagnostic tool

hkj

"My Naff Code Reader" - KW2000 Communication Window> 2002 (2)|Omega-B|Engine|Z 22 XE

Keyword #1: EF
Keyword #2: 8F

Normal timing parameter set.

systemSupplierSpecific: L
VIN: W0L0VBF6921010923
vehicleManufacturerECUHardwareNumber 24426542 DG
systemSupplierECUHardwareNumber: SIE  0116004300
systemSupplierECUSoftwareNumber: 6586115108
systemSupplierECUSoftwareVersionNumber: 0800
exhaustRegulationOrTypeApprovalNumber: S01003
systemNameOrEngineType:  Z22XE
RepairShopCodeOrTesterSerialNumber:  S001002194
ProgrammingDate:  20041021

Identifier: 161D

CalibrationDate: O10D101C
CalibrationEquipmentSoftwareNumber: L2CD100A
ECUInstallationDate: 6586055204
VehicleManufacturerSpecific: 3200

Negative answer to service 0x30
The reason is: 0x22
conditionsNotCorrectOrRequestSequenceError


Negative answer to service 0x30
The reason is: 0x22
conditionsNotCorrectOrRequestSequenceError


Negative answer to service 0x30
The reason is: 0x22
conditionsNotCorrectOrRequestSequenceError


Negative answer to service 0x30
The reason is: 0x22
conditionsNotCorrectOrRequestSequenceError


Negative answer to service 0x30
The reason is: 0x22
conditionsNotCorrectOrRequestSequenceError


Negative answer to service 0x30
The reason is: 0x12
SubFunctionNotSupported-invalidFormat



Total number of fault codes: 2

P1700 - SVS request via CAN
 (00) - Present

P0303 - Cylinder 3 Misfire Detected
 (01) - Not present

what code on the engine page should i be using for my 2002 2.2 sport (ecotec engine)












Check the plugs are not immersed in either oil or water (starting with plug No. 3)
Then clear the codes & see what reappears :y

Here is a list of Fault Codes for your car:


http://www.omegaowners.com/forum/YaBB.pl?num=1197277611








Logged
If it ain't broke keep fixing it 'til it is!

griff2494

  • Junior Member
  • **
  • Offline Offline
  • Gender: Male
  • fallingbostal,germany
  • Posts: 135
    • View Profile
Re: no idea hopefully someone can help?
« Reply #49 on: 29 December 2010, 21:06:12 »
thanks for your reply

ive checked the plugs all is well,all clean no oil or water,and there new plugs

it also only seems to happen once the car is hot ,could it be the coil pack breaking down???

also maybe its because i think i had the "My Naff Code Reader" on the wrong setting (on the engine part it had loads of dif codes which i asume is the dif engines)as the codes it came up with arnt on the list in the above link :-(
Logged

Kneepad

  • Omega Knight
  • *****
  • Offline Offline
  • Gender: Male
  • West Scotland
  • Posts: 1409
    • View Profile
Re: no idea hopefully someone can help?
« Reply #50 on: 29 December 2010, 21:20:44 »


This code is an old one as it says 'Not Present'

P0303 - Cylinder 3 Misfire Detected
(01) - Not present

Clear the codes as suggested, then read again.

Logged

freecall666

  • Omega Knight
  • *****
  • Offline Offline
  • Gender: Male
  • looking over your shoulder
  • Posts: 1451
  • fun for all, get with the program
    • 2.0l sweat tank on wheels
    • View Profile
Re: no idea hopefully someone can help?
« Reply #51 on: 29 December 2010, 23:51:26 »
what settings are you using as that engine record, should just read fault codes, should be the second one down on right side fault codes use that and wipe them then try again and see what comes up then. record only work when engine is running.
« Last Edit: 29 December 2010, 23:51:45 by freecall666 »
Logged
Solar charger fitted.
If not Broke dont fix it..

griff2494

  • Junior Member
  • **
  • Offline Offline
  • Gender: Male
  • fallingbostal,germany
  • Posts: 135
    • View Profile
Re: no idea hopefully someone can help?
« Reply #52 on: 30 December 2010, 17:38:50 »
right im still not sure on the engine page on the "My Naff Code Reader" which one i should use for a 2002 2.2 ecotec engine

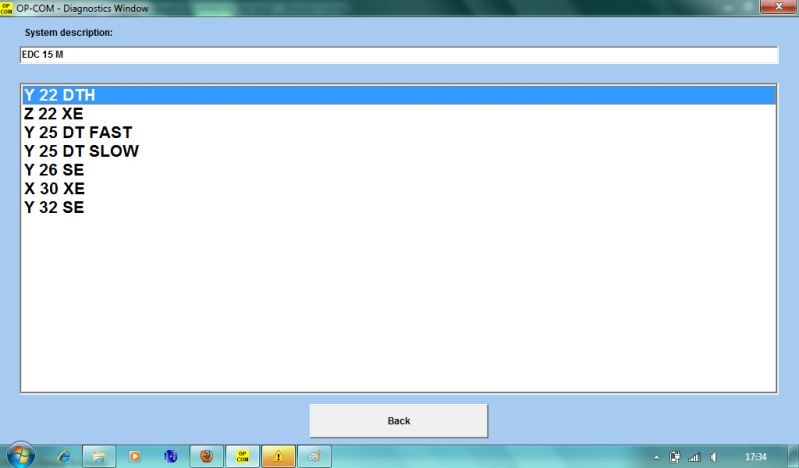

heres a screen shot of what i mean



can someone please tell me which of the above i should be using

also is there some kind of manual anywhere for the "My Naff Code Reader" software?so then i may be able to use it correctly

cheers
griff
Logged

omegod

  • Omega Baron
  • *****
  • Offline Offline
  • Gender: Male
  • liverpool
  • Posts: 4348
    • 2017 Seat Ateca
    • View Profile
Re: no idea hopefully someone can help?
« Reply #53 on: 30 December 2010, 17:43:38 »
If it's petrol Z22 XE
Logged
Happy to do Omega servicing etc around Merseyside,cruise activation, airbag lights sorted too...

griff2494

  • Junior Member
  • **
  • Offline Offline
  • Gender: Male
  • fallingbostal,germany
  • Posts: 135
    • View Profile
Re: no idea hopefully someone can help?
« Reply #54 on: 30 December 2010, 17:49:54 »
:-) cheers for that mate :-)

so i assume if it was derv it would be y 22 dth ???

and i assume the numbers are the engine size?

and ideas on the transmission page ? its a auto box i have
Logged

Andy B

  • Get A Life!!
  • *****
  • Offline Offline
  • Gender: Male
  • Bury Lancs
  • Posts: 39768
    • ML350 TDM SmartRoadster
    • View Profile
Re: no idea hopefully someone can help?
« Reply #55 on: 30 December 2010, 18:12:58 »
Quote
......

and ideas on the transmission page ? its a auto box i have

AR25 for all but 3.0/3.2 V6's which have an AR35  :y :y
Logged

griff2494

  • Junior Member
  • **
  • Offline Offline
  • Gender: Male
  • fallingbostal,germany
  • Posts: 135
    • View Profile
Re: no idea hopefully someone can help?
« Reply #56 on: 01 January 2011, 19:21:41 »
hi all again

i took your advise and cleared the codes and ran the car ,light came on a few more times each time i reset/cleared the light,on the fourth time i saved the fault codes ,heres what i got

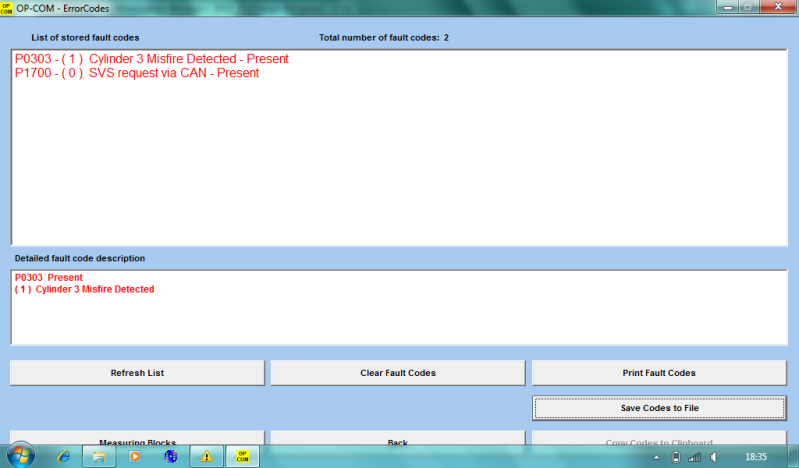

ENGINE


then GEARBOX


seeing the engine one says number 3 misfire,and its got new plugs and theres no oil/water/crap in there could this poss be coil pack going tits up ? (as again it only happens when car is warm)

as for gearbox any ideas?? (im just going to cross ref the codes after writing this to see what they are)
Logged

griff2494

  • Junior Member
  • **
  • Offline Offline
  • Gender: Male
  • fallingbostal,germany
  • Posts: 135
    • View Profile
Re: no idea hopefully someone can help?
« Reply #57 on: 01 January 2011, 19:27:13 »
:-( cant seem to find any of the above codes :-( for either engine or gearbox :-(
Logged

PhilRich

  • Omega Queen
  • *****
  • Offline Offline
  • Gender: Male
  • A bit further North of the Back of Beyond!
  • Posts: 10338
    • Mk 2 Volvo V70
    • View Profile
Re: no idea hopefully someone can help?
« Reply #58 on: 01 January 2011, 19:55:12 »
Hello again Griff  :y

As to the correct choice for gearbox code reading, you need to choose AR25/35 on the Transmission page of your  codereader.
Your gearbox code seems to point to a cam sensor problem. You will need to replace said sensor with a genuine vx part from a stealer :( Please see the link at the end of this post  ;)
As for the misfire code, this is still present so you have a problem on no.3 cylinder. I suggest you remove the Dis pack completely & check the general condition of the unit paying particular attention to the plug covers & rubber 'boots' that grip the plug. There should be no evidence of water or oil contamination, splits, cracks or general deterioration of any part of the unit (pay particular attention to no.3 connector). Also, it might be worth changing no.3 plug with another (say no.1?), clearing the codes & running the car a few times to see if the misfire moves from cyl3 to cyl1? :y


http://www.google.co.uk/url?sa=t&source=web&cd=1&ved=0CCYQFjAA&url=http%3A%2F%2Fwww.omegaowners.com%2Fforum%2FYaBB.pl%3Fnum%3D1252929393%2F0&ei=ToMfTYPdK42JhQe61ci3Dg&usg=AFQjCNHKlH4zKykWXuCtUMCNsdtcKzvdng





Also here is a list of GM (ie Vauxhall) specific Engine & Transmission codes, that seem to have more detail than the ones available in the OOF archive? :y

http://myweb.accessus.net/~090/dtcobd2p.html#gmd
« Last Edit: 01 January 2011, 20:03:29 by philrich1064 »
Logged
If it ain't broke keep fixing it 'til it is!

RobG

  • Omega Queen
  • *****
  • Offline Offline
  • Gender: Male
  • Bristol
  • Posts: 13831
  • I might have a link, pic or part number for that
    • 16 plate Mokka. Vivaro
    • View Profile
Re: no idea hopefully someone can help?
« Reply #59 on: 01 January 2011, 20:05:06 »
Quote
:-( cant seem to find any of the above codes :-( for either engine or gearbox :-(
P1781 - Engine Torque Signal Circuit
Generic code for GMC amongst others. Not pertinent to yours
Logged
All that is necessary for the triumph of evil is that good men do nothing.
